Fire Rated LED Downlight 12W 1080 Lumens Dimmable Warm White 3000k with 3 years Warranty

1). Item No: OX-FDL-12W
2). Wattage: 12W
3). Power factor: 0.95
4). CRI>80, RA90 is Optional.
5). Luminous  efficiency: 90-100lm/W.
6). Cool White, 5500K.Nature White,4500k,Warm White 3000k

Category:
Inquiry Now

Product Description

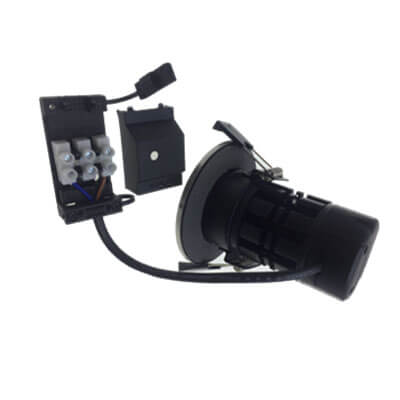

Fire Rated LED DownLight (8W/10W/12W)



Fire rated led downlight includes 8w led fire rated downlight,10w fire rated down light and 12w fire proof downlights.



These fire proof downlights designd with good heat dissipation of aluminum attoy and isolated driver.These fire rated led downlights pass 90 mins BS476-21 fire test and can be dimmable .

The fire proof downlights of face has silver and gold color optional. fire proof led downlights 8w produces 750 lumen with epistar cob chip ,90 lumen per watt.which is equivalent to 80w halogens.

It’s long lifespan of 50 000 hours.every lamps will be aging-test more than 72 hours and 3 years warranty .There are variaty different color temperature of warm white, natural white and cool white.





Features

  • 3 Year  Warranty
  • Watts 8w 10w 12w
  • Top Lumen 90-100 lm/w
  • CE RoHS and TUV Certification
  • Fire rating pass 90 min BS476-21 fire test
  • Energy Savings of up to 50%
  • Lumen Maintenance over 70% @ 50,000+ Hours

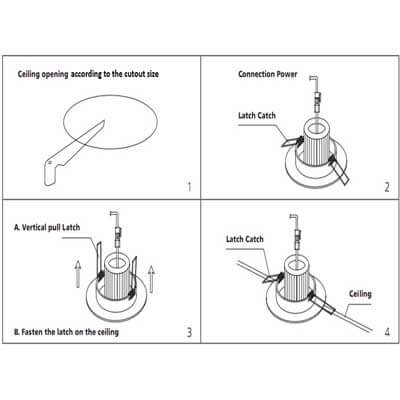

  • For ceiling mounting
  • The driver PFC can be up to 0.95.
  • No UV/IR Radiation / No RF Interference
  • Best famous brand drivers are used: Meanwell or Lifud .
  • 8+ Years OX LIGHTING Design & Manufacturing



Applications

  • Office Lighting
  • Display case
  • Bathroom Lighting
  • Dining room
  • Living room
  • Kitchen Room

Available Options

  • Other voltage 175-265v,  100-277v
  • Other color Silver,White Paint
  • Other C.C.T. 3000k, 4000k,5500k, 6500k
Item No

OX-FDL-12W

Power

12W

CRI

80

Power Factor

0.9

Voltage

85-265V

Frequency (hz)

50/60HZ

Chip Brand

Epistar

LED Chip

cob

LED Quantity

1 PCS

Luminous (LM)

1080 LM

Luminous Flux

90 LM/W

Color Temperature(CCT)

3000K 4500K 5500K 6500K

Material

Die-cast aluminum

Beam Angle (Degree)

180 Degree

Certification

CE RoHS SAA

Rated lifetime (h)

50 000 HRS

Model Watts Qty/Ctns GW/KG
OX-FDL-8W-COB 8W 36 9.8 0.03
OX-FDL-10W-COB 10W 36 9.8 0.03


   DOWNLOAD

   (categlogue,IES ,Test Report)

DOWNLOAD
