Home >> Products >> 8 Foot LED Tube Lights 44w 5200 Lumens FA8 R17D Base White 6500k with 5 years Warranty

8 Foot LED Tube Lights 44w 5200 Lumens FA8 R17D Base White 6500k with 5 years Warranty

1). Item No: OX-T8-A240-44W
2). Wattage: 44W
3). Size: 26*2398mm
4). CRI>80, RA90 is Optional.
5). Luminous  efficiency: 100-120lm/W.
6). Cool White, 5500K.Nature White,4500k,Warm White 3000k

Category:
Inquiry Now

Product Description

8 Foot LED Tube Lights 44w

8 foot led tube light can be 36w and 44w.which produce with 100-120 lumen per watt,Total over 5200 lumen.8ft led tube light designed with two led driver which pass emc test and the power factor up to over 0.95.These tube fixture are very energey saving and easy to install.

Fixture Construction

2400mm t8 led tube light is just like another size of led tube light,for example 4 foot led tube.This lighting fixtures an aluminum frame to hourse, the aluminum PCB ,the PVC cover and two hight quality led driver.The PCB used double 1200mm pcb and connected together.

Performance

Not only are 36w led tube light a high lumen of 2835 SMD LEDS,it also use high efficiency driver system and high transmittance cover.Heat dissipation is excellent too,which choose 6063 aluminum.Every leds are each bulb.it’s independently swithed on and off.If single leds not work.8 ft led tube light could instantly flood the workshop when switched.These tube lamps would be no flickering and no humming,and they are also be no RF interference.

Color Temperature

44w 8ft led tube light are different in various colors,but most popular of led tube light colors available in the market are cool white (6000-6500k)and warm white (2700-3200k) ,most people love 5000k of nature white ,which looks not so brightness but high luminous flux.

Installation Options
8 ft led tube light is easy to install.There are three end cap : G13 Base,FA8 End Cap and R17D end cap.In the common,the g13 base led tube light is popular in the market.FA8 and R17D end caps based on the T8 lamp holder.To replace the old tube lights,there is installation of proceduce

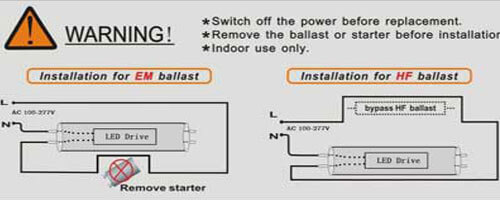

how-to-install-led-tube-1. Turn off the power to the light fixture at the breaker panel before installation
2.Open the diffuser from the light fixture
3.Remove the fuorescent tubes ,please dispose of these items properly as they contain mercury
4.Cut all the wires of ballast
5.Make the new wie connect to branch circuit.
6. Replace the cover over the wiring channel
7. Install the led tubes ,close the diffuser.




2400mm t8 tube lights application: Hospitality Office, Store or School Basement or Garage Laundry rooms or KitchensDisplay case Box Signs Parking garage, Showrooms, Malls, Restaurants, Hotels, Buses Trains, Warehouse, and many other applications.

Warranty

T8 led tube light 8 foot is 5 years warranty guarantee.the theoretical life span is around 100, 000 hours, which means that they could last for around 27 years.when used for 8 hours every day. However, the average life span is around 60, 000 hours, which means that they could last up to 20 years

Available Options
Other size available : 2ft/3ft/4ft/5ft/6ft/8ft
Other Voltages available:175-265v,100-277v
Item No

OX-T8-A240-44W

Power

44W

Power Factor

0.95

CRI

80

Voltage

85-265V

Beam Angle (Degree)

120 Degree

Chip Brand

Epistar

Luminous (LM)

5200LM

Warranty

5 Years

Certification

CE RoHS TUV UL

Rated lifetime (h)

50 000hrs

Applications

Hospitality Office, Store or School Basement or Garage Laundry rooms

Reviews

There are no reviews yet.

Be the first to review “8 Foot LED Tube Lights 44w 5200 Lumens FA8 R17D Base White 6500k with 5 years Warranty”


Model Watts Qty/Ctns GW/KG
OX-T8-A60-9W 9W 25 7.9 0.03
OX-T8-A90-12W 12W 25 8.9 0.042
OX-T8-A120-18W 18W 25 11.5 0.055
OX-T8-A150-22W 22W 25 15.8 0.069
