Home >> Products >> Flush Mount Led Panel Light 12W 85-265V 1000 Lumen Warm White 2800-3200k with CE RoHS certification

Flush Mount Led Panel Light 12W 85-265V 1000 Lumen Warm White 2800-3200k with CE RoHS certification

1). Item No: OX-MSR-12W
2). Wattage: 12W
3). Size:Φ170*39mm
4). CRI>80, RA90 is Optional.
5). Luminous  efficiency: 80-85lm/W.
6). Cool White, 5500K.Nature White,4500k,Warm White 3000k

Inquiry Now

Product Description

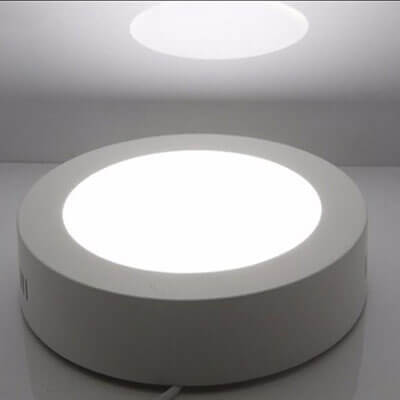

Flush mount led panel light 12W (Round)

Round Led Surface Panel Lights 12W designed to be mounted on a flat surface,and will fit into a round space of size about Φ170*39mm.It’s output of 1000 lumens with 60 pcs high brightenss 2835smd from Epistar chip.

Surface panel lights comes complete with all fixtures and fittings, including high power factor of led driver,which pass EMC test with protection for high voltage current, short circuit and open circuit.In additional,the aluminum housing with perfect heat dissipation.so the lifespan can be up to 50 000 hours.

There are a wide range of color temperature,which include warm white (2800-3200k),netural white (4000-4500k) daylight white (5000-5500k) and cool white (6000-6500k).The application of shopping mall, hotel,restaurant, stairwell, office.

Features

  • 3 Year  Warranty
  • Watts 12W round surface  shape
  • Top Lumen 90-100lm/w
  • CE RoHS and TUV Certification
  • Ceiling LED luminaires with aluminum frame in high value design
  • Energy Savings of up to 50%
  • Lumen Maintenance over 70% @ 50,000+ Hours
  • For ceiling mounting or pendant mounting
  • The driver PFC can be up to 0.9
  • No UV/IR Radiation / No RF Interference
  • Best famous brand drivers are used: Meanwell or Lifud .
  • 8+ Years OX LIGHTING Design & Manufacturing

Applications

  • Office Lighting
  • Production Area
  • Warehouse Lighting
  • Restaurants
  • Retail Store Display Lighting
  • Transportation
  • Undercabinet Lighting
  • Hallway & lobbies

Available Options

  • Other power /6W/12W/18W/24W
  • Other voltage 175-265v,  100-277v,
  • Other colorSilver,White Paint
  • Other C.C.T. 3000k, 4000k,5500k, 6500k
Item No

OX-MSR-12W

Power Factor

0.9

CRI

80

Power

12W

Voltage

85-265V

Frequency (hz)

50/60HZ

Chip Brand

Epistar

LED Chip

SMD 2835

LED Quantity

120 PCS

Luminous (LM)

>1000LM

Luminous Flux

80-85lm/w

Size

Φ170*39mm

Color Temperature(CCT)

3000K 4500K 5500K 6500K

Material

Die-cast aluminum + PS diffusion light guide plate

Beam Angle (Degree)

180 Degree

Certification

CE RoHS

Rated lifetime (h)

50 000 HRS

Warranty

3 years warranty

Applications

home, shopping mall, hotel,restaurant, stairwell, office

Reviews

There are no reviews yet.

Be the first to review “Flush Mount Led Panel Light 12W 85-265V 1000 Lumen Warm White 2800-3200k with CE RoHS certification”

Model Watts Qty/Ctns GW/KG
OX-MSR-6W 6W 40 12.5 0.045
OX-MSR-12W 12W 20 10.8 0.045
OX-MSR-18W 18W 20 14.5 0.075
OX-MSR-24W 24W 20 22.8 0.095


   DOWNLOAD

   (categlogue,IES ,Test Report)
