LED Car Park Lighting 100W 12000 Lumens White 5000k with CE RoHS TUV Certification 5 Years Warranty

1). Item No: OX-TR240-100W
2). Wattage: 100W
3). Size: 2400MM
4). CRI>80, RA90 is Optional.
5). Luminous  efficiency: 120lm/W.
6). Cool White, 5500K.Nature White,4500k,Warm White 3000k

Inquiry Now

Product Description

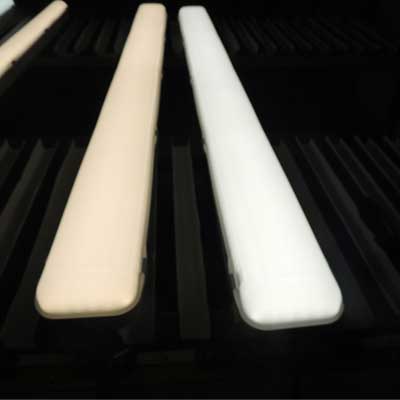

LED Car Park Lighting 100w

Car park lighting 100w is very strong brightness to produce 12000 lumens,high CRI over 80 and the led driver power factor up to 0.95.In addtion, 8ft tri proof lights use high quality material ,good heat dissipation of 6063 aluminum,good aluminum pcb,high transmittance 90% PC cover and passed UL TUV power supply.



tri proof lights mean IP65 waterproof, explosion-proof, dust-proof,which are widey use for lots of application,such as Gym/ Swimming pool/Changing room, Supermarket/Shops/Exhibition hall and public service of Parking place/Basement/Metro station



tri-proof lights 100w is very easy to install,there are three ways to choose,including under ceiling, wall-mounted and linkable.for this lights,our guarantee policy is 5 years and has different color options: warm white 2700-3200k, natural white 4500-5000k, cool white 6000-6500k.





Features

  • 5 Year  Warranty
  • Watts 100W
  • Top Lumen 100-120 lm/w
  • CE RoHS and TUV Certification
  • Ceiling LED luminaires with aluminum frame in high value design
  • Energy Savings of up to 50%
  • Lumen Maintenance over 70% @ 50,000+ Hours
  • For ceiling mounting or pendant mounting
  • The driver PFC can be up to 0.95.
  • No UV/IR Radiation / No RF Interference
  • Best famous brand drivers are used: Meanwell or Lifud .
  • 8+ Years OX LIGHTING Design & Manufacturing

Applications

  • Office Lighting
  • Production Area
  • Warehouse Lighting
  • Restaurants
  • Retail Store Display Lighting
  • Transportation
  • Undercabinet Lighting
  • Hallway & lobbies

Available Options

  • Other power 20W/30W/40W/50W/60W/80W/100W
  • Other voltage 175-265v,  100-277v, 0-10v
  • Other colorSilver,White Paint
  • Other C.C.T. 3000k, 4000k,5500k, 6500k



Item No

OX-TR240-100W

Power

100W

Power Factor

0.95

Voltage

85-265V

Frequency (hz)

50/60HZ

CRI

80

Luminous Flux

120LM/W

Luminous (LM)

>12000 Lumen

Chip Brand

Epistar

LED Chip

2835 SMD

LED Quantity

624 PCS

Beam Angle (Degree)

180 Degree

Color Temperature(CCT)

3000k 4500k 5500k,6500k

Certification

CE RoHS TUV

Dimmable

Yes

Material

Aluminum +PC cover

Size

2400mm

Rated lifetime (h)

50 000 HRS

Warranty

5 years guarantee

Applications

industrial lighting, warehouses, parking garages, tunnels

Reviews

There are no reviews yet.

Be the first to review “LED Car Park Lighting 100W 12000 Lumens White 5000k with CE RoHS TUV Certification 5 Years Warranty”

Model Watts Qty/Ctns GW/KG
OX-TR60-20W 20W 6 10.5 0.067
OX-TR90-30W 30W 6 15.8 0.089
OX-TR120-40W 40W 6 17.6 0.111
OX-TR150-50W 50W 6 20.8 0.137
OX-TR180-80W 80W 6 31.5 0.168
OX-TR240-100W 100W 6 35.3 0.22
