Home >> Products >> LED Ceiling Panel Lights 1200 x 600 56W 6300 Lumen 100-277v Neutral White 4000K TUV Certification

LED Ceiling Panel Lights 1200 x 600 56W 6300 Lumen 100-277v Neutral White 4000K TUV Certification

1). Item No: OX-PA60120-56W
2). Wattage: 56W (60w available)
3). Size: 2×4 ft (595*1195mm)
4). CRI>80, RA90 is Optional.
5). Luminous  efficiency: 80-115lm/W.
6). Cool White, 5500K.Nature White,4500k,Warm White 3000k

Inquiry Now

Product Description

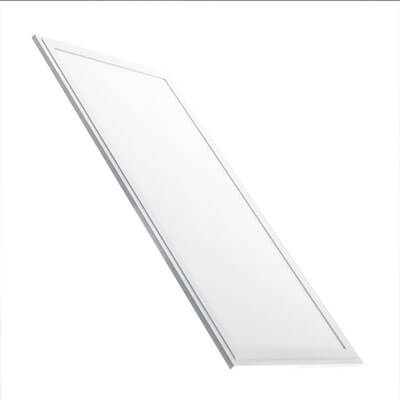

1200 x 600 LED Ceiling Panel Lights



Led Panel Light 2×4 56W is modern look with the edge-lit illumination that ensures bright, even lighting across the entire panel and make it softly.



2 x 4 led panel light puts out 6300 lumens with 216 pcs epistar chips 2835 SMD ,which can be to replace with a 4-ft, two-tube fixture lights.



LED ceiling panel light 56w is easy to install and use.It’s very ultra-thin, energy-saving.When planning your job for old or new, these panel lights can be installed in suspended grid ceilings or surface mounted as part of new construction.



Features

  • 5 Year  Warranty
  • Watts 56w or 60w
  • Top Lumen 115lm/w
  • CE RoHS and TUV Certification
  • Ceiling LED luminaires with aluminum frame in high value design
  • Energy Savings of up to 50%
  • Lumen Maintenance over 70% @ 50,000+ Hours
  • For ceiling mounting or pendant mounting
  • The driver PFC can be up to 0.95.
  • No UV/IR Radiation / No RF Interference
  • Best famous brand drivers are used: Meanwell or Tridonic .
  • Installation: Suspension/Wall Mount, Recessed/Ceiling Mount
  • 8+ Years OX LIGHTING Design & Manufacturing

Applications

  • Office Lighting
  • Production Area
  • Warehouse Lighting
  • Restaurants
  • Meeting Rooms
  • Transportation
  • Undercabinet Lighting
  • Hallway & lobbies

Available Options

  • Other size   295X1195mm  595X1195mm  195x595mm  400x400mm
  • Other voltage 175-265v,  100-277v, 0-10v
  • Other colorSilver,White Paint
  • Other C.C.T. 3000k, 4000k,5500k, 6500k
Item No

OX-PA60120-56W

Power

56W

Voltage

85-265V

Frequency (hz)

50/60 HZ

Power Factor

>0.9

CRI

80

Beam Angle (Degree)

120 beam angle

Chip Brand

Epistar

LED Quantity

216 pcs

Luminous (LM)

>6300LM

Luminous Flux

115LM/W

Dimmable

NO

Material

Aluminum

Protection Rating

IP20

Certification

CE RoHS TUV

Warranty

5 Years

Applications

Office Lighting Restaurants Hotels Schools Hospitals Meeting Rooms

Reviews

There are no reviews yet.

Be the first to review “LED Ceiling Panel Lights 1200 x 600 56W 6300 Lumen 100-277v Neutral White 4000K TUV Certification”

Model Watts Qty/Ctns GW/KG
OX-PA3030-18W 18W 4 5.36 0.005
OX-PA6060-36W 36W 4 20.5 0.102
OX-PA3060-40W 40W 4 20.5 0.108
OX-PA60120-60W 60W 2 22.5 0.096
