Radar Sensor LED Tri-proof Fixture 120W 14400 Lumens Cool White 6500k with 5 years Warranty

1). Item No: OX-TR300-120W
2). Wattage: 120W
3). Size: 3000MM
4). CRI>80, RA90 is Optional.
5). Luminous  efficiency: 120lm/W.
6). Cool White, 5500K.Nature White,4500k,Warm White 3000k

Inquiry Now

Product Description

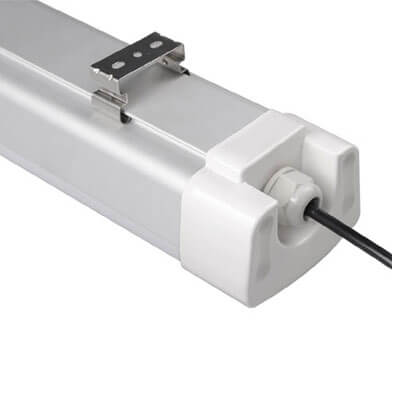

 Radar sensor led tri-proof fixture

Tri proof light fixture means water-proof ,dust-proof and corrosion-proof.



These tri-proof lights comes with high quality material of good heat dissipation 6063 aluminum attoy housing ,aluminum PCB ,high lumens Epistar Chip 2835SMD and isolated led driver.



To achieve anti-oxidation,anti-corrsion and the silicon seals completely.Tri proof led lights have three types.the normal tri proof light,sensor tri proof lights and emergency led tri proof lights.

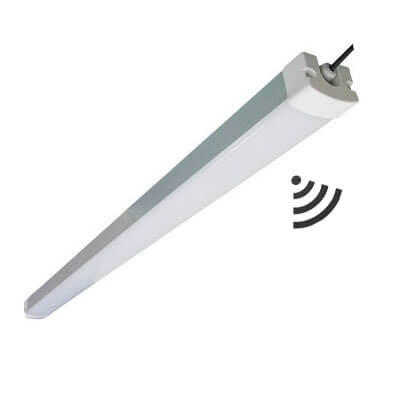

motion sensor tri proof lights

Radar Sensor tri proof lights can be installed with hanging, ceiling mounted and linkable,which used widely for lots of application,such as parking lots,garage,factory ,cold storage,warehouse,shopping center and kitchen.







radar sensor tri-proof lights

Theses sensor tri proof light fixture is very energy-saving,when people comes the lights is on,and gone,the light will be off. In more addional,it’s safe for people.so the lights is named for safety light or security tri proof lights.





Features

  • 5 Year  Warranty
  • Watts 20W 30W 40W 50W 60W 80W 100W 120W
  • Top Lumen 100-120 lm/w
  • TUV CE SAA UL Listed

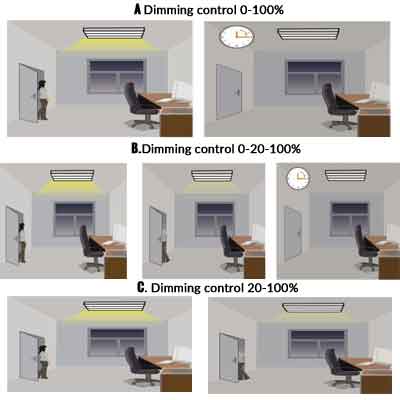

  • Sensor Type 0-100% dimming control 0-20-100% dimming control and 20-100% dimming control
  • Energy Savings of up to 50%
  • Lumen Maintenance over 70% @ 50,000+ Hours

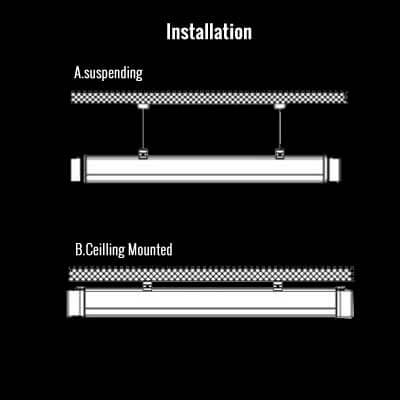

  • For ceiling mounting or pendant mounting
  • The driver PFC can be up to 0.95.
  • No UV/IR Radiation / No RF Interference
  • Best famous brand drivers are used: Meanwell or Lifud .
  • 8+ Years OX LIGHTING Design & Manufacturing





Available Options

  • Other type:Emergency tri proof light, o-10v dimming tri proof lights
  • Other voltage 200-2640v,  100-277v, 0-10v
  • Other C.C.T. 3000k, 4000k,5500k, 6500k



Item No

OX-TR300-120W

Power

120W

Power Factor

0.95

Voltage

100-277V

Frequency (hz)

50/60HZ

CRI

80

Luminous Flux

120LM/W

Luminous (LM)

>14400 Lumen

Chip Brand

Epistar

LED Chip

2835 SMD

Beam Angle (Degree)

180 Degree

Color Temperature(CCT)

3000k 4500k 5500k,6500k

Certification

CE RoHS TUV UL

Dimmable

Yes

Material

Aluminum +PC cover

Size

3000mm

Rated lifetime (h)

50 000 HRS

Warranty

5 years guarantee

Applications

industrial lighting, warehouses, parking garages, tunnels

Reviews

There are no reviews yet.

Be the first to review “Radar Sensor LED Tri-proof Fixture 120W 14400 Lumens Cool White 6500k with 5 years Warranty”

Model Watts Qty/Ctns GW/KG
OX-TR60-20W 20W 6 10.5 0.067
OX-TR90-30W 30W 6 15.8 0.089
OX-TR120-40W 40W 6 17.6 0.111
OX-TR150-50W 50W 6 20.8 0.137
OX-TR180-80W 80W 6 31.5 0.168
OX-TR240-100W 100W 6 35.3 0.22
