Surface Mounted Led Panel Lights 18W 85-265V 1500 Lumens CE RoHS With 3 years Warranty

1). Item No: OX-MSS-18W
2). Wattage: 18 watta
3). Size: 170*170*39mm
4). CRI>70, RA80 is Optional.
5). Luminous  efficiency: 90-100lm/W.
6). Cool White, 5500K.Nature White,4500k,Warm White 3000k

Inquiry Now

Product Description

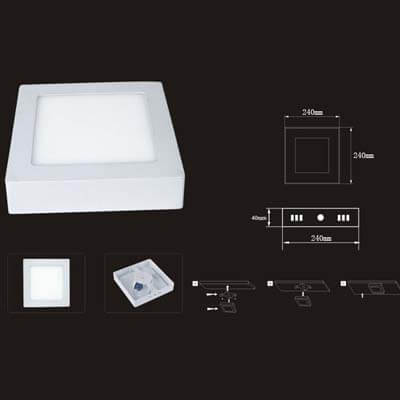

Surface Mounted Led Panel Lights

Surface Mounted LED Panel Light , named Square Ceiling Light, Downlight Lamp with driver.the driver of power factor should be 0.9.These square led surface lights with high lumen 90-100lm per watts.It’s very easy to install ,energy saving and Environmental friendly.it’s used by LM-80 LED chip as led panel lighting resource .

Surface mounted panel lights are designed to focus the light and can be directed to a specific location without the use of an external reflector.Theses panel lights include color temperature of warm white 3000k, natural white 4500k and cool white 6500k.

Features



  • Surface Mounted Led Panel Lights ( 24w/18w/12w/6w)
  • Top Lumen 90-100lm/w
  • CE RoHS and TUV Certification
  • Ceiling LED luminaires with aluminum frame in high value design
  • Energy Savings of up to 50%
  • Lumen Maintenance over 70% @ 50,000+ Hours
  • For ceiling mounting or pendant mounting
  • The driver PFC can be up to 0.9
  • No UV/IR Radiation / No RF Interference
  • Best famous brand drivers are used: Meanwell or Lifud .
  •  3 Year  Warranty
  • 8+ Years OX LIGHTING Design & Manufacturing

Applications



  • Production Area
  • Warehouse Lighting
  • Restaurants
  • Retail Store Display Lighting
  • Transportation
  • Undercabinet Lighting
  • Hallway & lobbies
  •  Office Lighting

Available Options

  • Other voltage 175-265v,  100-277v,
  • Other colorSilver,White Paint
  • Other C.C.T. 3000k, 4000k,5500k, 6500k
Item No

OX-MSS-18W

Power

18W

Power Factor

0.9

Voltage

85-265

Frequency (hz)

50/60 HZ

CRI

80

Chip Brand

Epistar

LED Chip

2835

LED Quantity

90 PCS 2835

Size

170*170*39mm

Luminous (LM)

1500 LM

Luminous Flux

80-85lm/w

Beam Angle (Degree)

180

Material

Die-cast aluminum + PS diffusion light guide plate

Warranty

3 years guarantee

Dimmable

NO

Rated lifetime (h)

50 000

Certification

CE RoHS

Applications

Office Healthcare Commercial Corridors Living rooms

Reviews

There are no reviews yet.

Be the first to review “Surface Mounted Led Panel Lights 18W 85-265V 1500 Lumens CE RoHS With 3 years Warranty”


Model Watts Qty/Ctns GW/KG
OX-MSS-6W 6W 40 14.5 0.045
OX-MSS-12W 12W 20 11.8 0.045
OX-MSS-18W 18W 20 16.5 0.075
OX-MSS-24W 24W 20 26.8 0.095

   DOWNLOAD

   (categlogue,IES ,Test Report)
