IP65 Tri-proof LED Lights 40W 4800 Lumens Warm White 3000k CE RoHS TUV Certification

1). Item No: OX-TR120-40W
2). Wattage: 40W
3). Size: 1200MM
4). CRI>80, RA90 is Optional.
5). Luminous  efficiency: 120lm/W.
6). Cool White, 5500K.Nature White,4500k,Warm White 3000k

Inquiry Now

Product Description

4800 Lumens LED Tri-proof Lights 40w 4ft

IP65 Tri-proof led lights 40w comes with a 5 years warranty, 4ft tri-proof led lights are available with transparent and milky covers the milky covers of tri-proof led lights used widely,because lighten the lights,leds are invisible ,it looks very softly and harmless to the eyes.

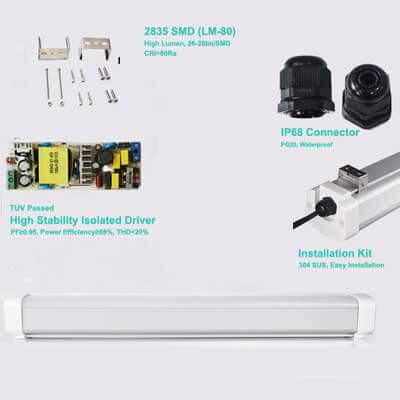

120omm tri proof led lights offer top quality material,good heat dissipation of 6063 aluminum alloy and aluminum PCB,TUV UL isolated driver,which power factor is up to 0.95.this lights output 4800 lumens ,which match with 240 pcs 2835smd of epistar chips.It’s very brightness,every power is up to 120 lumens.These tri-proof lights are very ideal replacement of industrial and commerial application,which include Gas station,Parking Place,Supermarket
Shopping malls,Parking garages and Parking lots.

40W tri proof led lights has different fixing options,includes ceilling surface mounted, suspendant and linkable.

Features

  • 5 Year  Warranty
  • Watts 40W
  • Top Lumen 100-120 lm/w
  • CE RoHS and TUV Certification
  • Ceiling LED luminaires with aluminum frame in high value design
  • Energy Savings of up to 50%
  • Lumen Maintenance over 70% @ 50,000+ Hours
  • For ceiling mounting or pendant mounting
  • The driver PFC can be up to 0.95.
  • No UV/IR Radiation / No RF Interference
  • Best famous brand drivers are used: Meanwell or Lifud .
  • 8+ Years OX LIGHTING Design & Manufacturing

Applications

  • Office Lighting
  • Production Area
  • Warehouse Lighting
  • Restaurants
  • Retail Store Display Lighting
  • Transportation
  • Undercabinet Lighting
  • Hallway & lobbies

Available Options

  • Other power 20W/30W/40W/50W/60W/80W/100W
  • Other voltage 175-265v,  100-277v, 0-10v
  • Other colorSilver,White Paint
  • Other C.C.T. 3000k, 4000k,5500k, 6500k



Item No

OX-TR120-40W

Power

40W

Power Factor

0.95

Voltage

85-265V

Frequency (hz)

50/60HZ

CRI

80

Luminous Flux

120LM/W

Luminous (LM)

>4800 Lumen

Chip Brand

Epistar

LED Chip

2835 SMD

LED Quantity

240 PCS

Beam Angle (Degree)

180 Degree

Color Temperature(CCT)

3000k 4500k 5500k,6500k

Certification

CE RoHS TUV

Dimmable

Yes

Material

Aluminum +PC cover

Size

1200mm

Rated lifetime (h)

50 000 HRS

Warranty

5 years guarantee

Applications

industrial lighting, warehouses, parking garages, tunnels

Reviews

There are no reviews yet.

Be the first to review “IP65 Tri-proof LED Lights 40W 4800 Lumens Warm White 3000k CE RoHS TUV Certification”

Model Watts Qty/Ctns GW/KG
OX-TR60-20W 20W 6 10.5 0.067
OX-TR90-30W 30W 6 15.8 0.089
OX-TR120-40W 40W 6 17.6 0.111
OX-TR150-50W 50W 6 20.8 0.137
OX-TR180-80W 80W 6 31.5 0.168
OX-TR240-100W 100W 6 35.3 0.22

   DOWNLOAD

   (categlogue,IES ,Test Report)

DOWNLOAD
