Ultra Slim Led Panel Light 24W 85-265V 1850 Lumens 5500k White Color with CE RoHS

1). Item No: OX-Mas-24W
2). Wattage: 24W

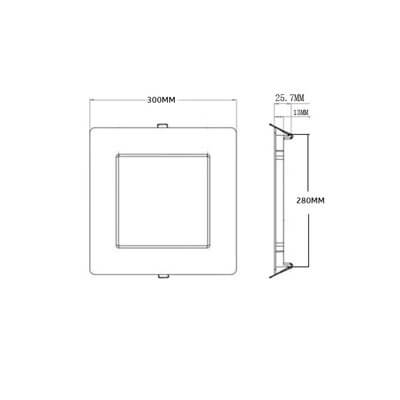

3). Size: 295×295×20MM
4). CRI>80, RA90 is Optional.
5). Luminous  efficiency: 80lm/W.
6). Cool White, 5500K.Nature White,4500k,Warm White 3000k

Inquiry Now

Product Description

9″ Ultra Slim Led Panel Lights 24W (Square )

Square led panel lights 24w outputs super high brightness 2000 lumens with 85 lm per watts ,120 pcs smd 2835 led chips from Taiwan Epistar brand.



The lifespan,first of all,led panel lights are not likely to burn out.Acctually,their life span is not measured by the time it takes for them to stop functioning altogether.but these panel lights can be 50 000hrs.which means that the lamps can be last for about 27 years when used for 8 hrs every day.It’s better than incandescent bulb.24 w panel lights can replace 120w old halogen DownLights.



The driver of square led panel lights is EMC driver with protection for high voltage current,and offering aluminum inside for good heat dissaption.Slim led panel lights 24w is very easy to install,and widely used for residential and commercial,such as home, shopping mall, hotel,restaurant, stairwell, office.



Features

  • 3 Year  Warranty
  • Watts 24W square shape
  • Top Lumen 90-100lm/w
  • CE RoHS and TUV Certification
  • Ceiling LED luminaires with aluminum frame in high value design
  • Energy Savings of up to 50%
  • Lumen Maintenance over 70% @ 50,000+ Hours
  • For ceiling mounting or pendant mounting
  • The driver PFC can be up to 0.95.
  • No UV/IR Radiation / No RF Interference
  • Best famous brand drivers are used: Meanwell or Lifud .
  • 8+ Years OX LIGHTING Design & Manufacturing

Applications

  • Office Lighting
  • Production Area
  • Warehouse Lighting
  • Restaurants
  • Retail Store Display Lighting
  • Transportation
  • Undercabinet Lighting
  • Hallway & lobbies

Available Options

  • Other power 3W/6W/9w/12W/15W/18W
  • Other voltage 175-265v,  100-277v, 0-10v
  • Other colorSilver,White Paint
  • Other C.C.T. 3000k, 4000k,5500k, 6500k
Item No

OX-Mas-24W

Power

24W

Power Factor

>0.9

CRI

80

Voltage

85-265V

Frequency (hz)

50/60HZ

Chip Brand

Epistar

LED Chip

2835 SMD

LED Quantity

120 PCS

Luminous (LM)

2000LM

Luminous Flux

85LM/W

Beam Angle (Degree)

180 Degree

Size

Φ295*295*20mm

Material

Die-cast aluminum + PS diffusion light guide plate

Rated lifetime (h)

50 000 HRS

Certification

CE RoHS

Color Temperature(CCT)

2800-6500k

Warranty

3 years guarantee

Applications

Office Healthcare Commercial Corridors Living rooms

Reviews

There are no reviews yet.

Be the first to review “Ultra Slim Led Panel Light 24W 85-265V 1850 Lumens 5500k White Color with CE RoHS”

Model Watts Qty/Ctns GW/KG
OX-Mas-3W 3W 50 9 0.065
OX-Mas-6W 6W 40 11.2 0.038
OX-Mas-9W 9W 40 14.4 0.065
OX-Mas-12W 12W 40 17.2 0.081
OX-Mas-15W 15W 20 11.2 0.048
OX-Mas-18W 18W 20 13.4 0.048
OX-Mas-24W 24W 20 23.8 0.094
