Wall Mounted LED Panel Lights 24W 85-265V 2100 Lumens Daylight White 5500k with 3 years Warranty

1). Item No: OX-MSS-24W
2). Wattage: 24W

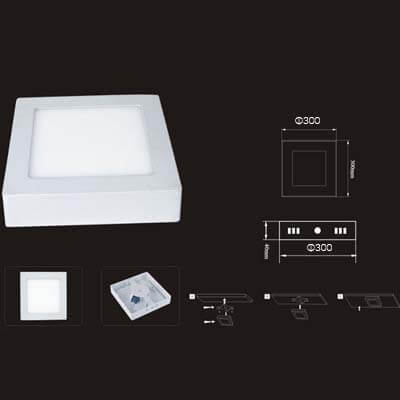

3). Size:300*300*39mm
4). CRI>80, RA90 is Optional.
5). Luminous  efficiency: 80-85lm/W.
6). Cool White, 5500K.Nature White,4500k,Warm White 3000k

Inquiry Now

Product Description

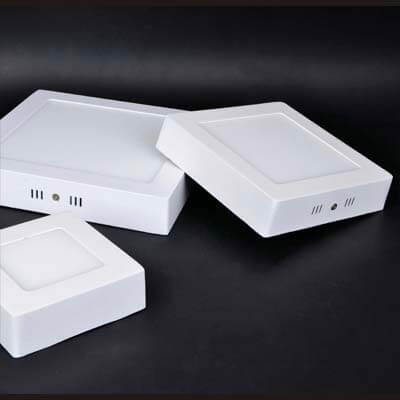

Wall Mounted Led Panel Lights 24W

Wall mounted led panel lights 24w designed to offer clean ,no-glare and distributed light evenly.These panel lights are very ideal replacements for fluorescent lamps.



24w led surface panel light is outputs of 2100 lumen,90-100lm per watts,120 pcs 2835 smd,good heat aluminum material,high quality acrylic sheets light guide plate and passed emc led driver of 5 years warranty.



Wall mounted led panel light has morden looking face,which are very good used for industrial and residential application in areas such as warehouse office ,hotel, kitchens and bathrooms.



These panel lights are installed with surface mouted,have a modern design with most contemporary architectural designs,to creat a clean and uncluttered effect.



The led panels are produced an average of about 50 000 hrs,this means to a lifetime of more than 17 years if use the lamp for 8 hours per days.so the these panels are more energy saving on the long-term.

Features

  • 3 Year  Warranty
  • Watts 24W square surface  shape
  • Top Lumen 90-100lm/w
  • CE RoHS and TUV Certification
  • Ceiling LED luminaires with aluminum frame in high value design
  • Energy Savings of up to 50%
  • Lumen Maintenance over 70% @ 50,000+ Hours
  • For ceiling mounting or pendant mounting
  • The driver PFC can be up to 0.9
  • No UV/IR Radiation / No RF Interference
  • Best famous brand drivers are used: Meanwell or Lifud .
  • 8+ Years OX LIGHTING Design & Manufacturing

Applications

  • Office Lighting
  • Production Area
  • Warehouse Lighting
  • Restaurants
  • Retail Store Display Lighting
  • Transportation
  • Undercabinet Lighting
  • Hallway & lobbies

Available Options

  • Other power /6W/12W/18W/24W
  • Other voltage 175-265v,  100-277v,
  • Other colorSilver,White Paint
  • Other C.C.T. 3000k, 4000k,5500k, 6500k



Item No

OX-MSS-24W

Power

24W

CRI

80

Power Factor

0.9

Voltage

85-265V

Frequency (hz)

50/60HZ

Chip Brand

Epistar

LED Chip

SMD 2835

LED Quantity

120 PCS

Luminous (LM)

2000LM

Luminous Flux

80-85lm/w

Size

300*300*39mm

Color Temperature(CCT)

3000K 4500K 5500K 6500K

Material

Die-cast aluminum + PS diffusion light guide plate

Beam Angle (Degree)

180 Degree

Certification

CE RoHS

Rated lifetime (h)

50 000 HRS

Warranty

3 years warranty

Applications

home, shopping mall, hotel,restaurant, stairwell, office

Reviews

There are no reviews yet.

Be the first to review “Wall Mounted LED Panel Lights 24W 85-265V 2100 Lumens Daylight White 5500k with 3 years Warranty”


Model Watts Qty/Ctns GW/KG
OX-MSS-6W 6W 40 14.5 0.045
OX-MSS-12W 12W 20 11.8 0.045
OX-MSS-18W 18W 20 16.5 0.075
OX-MSS-24W 24W 20 26.8 0.095
