Home >> Products >> Commercial LED Panel Light 2×2 36W 130LM/W Netural White 5000K UL Listed with 5 Years Warranty.

Commercial LED Panel Light 2×2 36W 130LM/W Netural White 5000K UL Listed with 5 Years Warranty.

  • Item No: OX-PA6060-36W-UL

  • Wattage: 36W (40w 48w available)

  • Size: 2×2 ft (603*603mm)

  • CRI>80, RA90 is Optional.

  • Luminous  efficiency: 130lm/W.

  • Cool White, 5500K.Nature White,4500k,Warm White 3000k

Inquiry Now

Product Description

Commercial LED Panel Light

UL cetified led panel lights are avaliable in different size and watts.such as 603*603mm 40w ,301*1212mm 40w and 603 *1212mm 60w.US stardard panel lights produce up to 130 lumen per watts and choose high quality led driver Meanwell or Lifud brand.It’s very easy to install for any possible location.



Fixture Construction

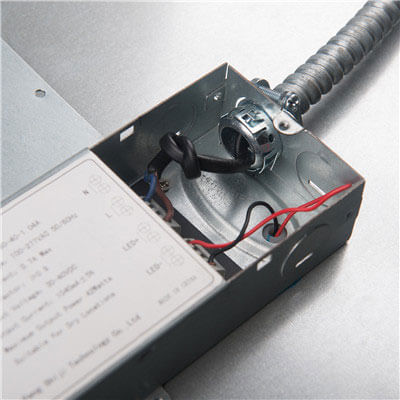

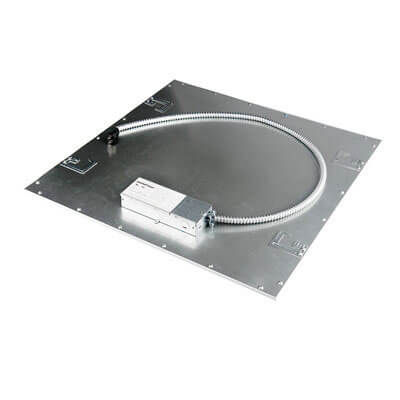

US led panel light like most of another panel light.including high quality 6063 aluminum back cover to protect the lights from dust and moisture,0.35mm tory reflector ,3mm pmma LGP,high lumen 2835smd leds,1.2mm diffuser , strong aluminum frame to release the heat of lamp and ul standard fixed driver.



Performance

UL led panel light is newest ,the DLC 4.0 premium,high luminous flu up to 130 lumen per watts. These panel lamp are no Flicker,top power efficiency (PF>0.9)and high CRI (Ra>80),THD<15%.The panel lights are glare-free to reduce the headache and fatigue caused by the irritation of the eyes. UL approved panel light are  no rewiring of fixture to minimize replacement and costs saving.



Color Temperature

In common, the panel light of different color has changed the luminous flu.ul standard led panel light provide three colors: Warm white (3000k),Netural white (5000k) and cool white (6000k).6000k led panel light of lumen is high ,5000k is middle and 3000k is less but looks very warmly and safety.In the market,the netural white color led panel light is very popular.



Installation Options

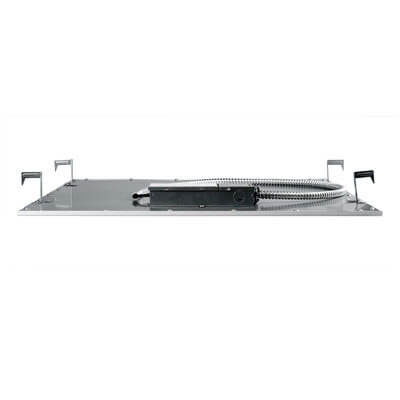

There are lots of way to install led panel light,such as Surface mounted ,Mounting ,Recessed and Suspending installation.It’s simple to introduce the recessed instation and suspending installation.



Recessed installation

1>Remove the traditional grid lights
2>Standing up the ear clips of panel light and make sure the led driver on the back cover.
3>Put the flat led panel light into the grid and connect led driver with the power.



Suspending installation

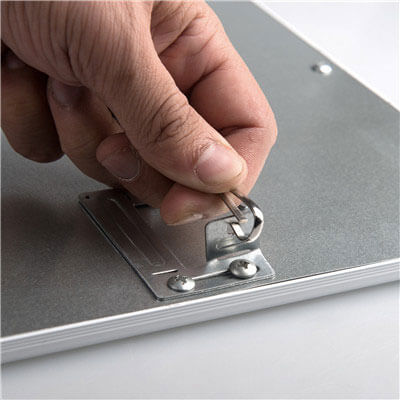

1>install the accessories to the panel light (make the ear clips standing and hooking the 4 clips by hanging cables)
2>Use screws to fix the 4 hanging cables onto the roof and adjust 4 steel cables to make sure that the ceilling panel light is on horizon.

ul led panle light install

Application

It’s easy to install and widely use.The application :Office Lighting Restaurants Hotels Schools Hospitals Hallway & lobbies Meeting Rooms.

Warranty

US Standard led ceilling panel light of warranty is up to 5 years or even more.UL standard led driver choose brand meawell,which can be over 7 years warranty.The leds use Epistar chip ,life span is around 100, 000 hours.

Available Options

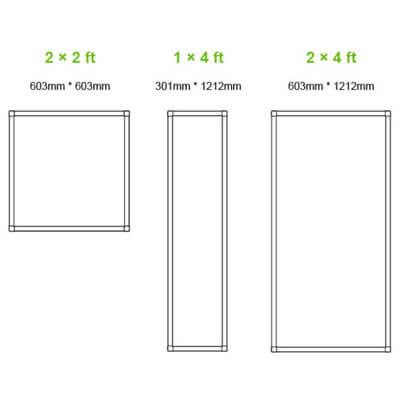

Other size available : 2’x2′    2’x4′    1’x4′
Other Voltages available:175-265v,100-277v,0-10v
Item No

OX-PA6060-36W-UL

Power

36W or 40W or 48W

Voltage

85-265V

Power Factor

>0.9

Luminous (LM)

>4635lm

Beam Angle (Degree)

150 Degree

CRI

80

Chip Brand

Epistar

LED Quantity

192pcs 2835 leds

Rated lifetime (h)

50 000hrs

Certification

UL DLC

Warranty

5 Years

Applications

Exhibition Hall, art galleries, museums Hallway & lobbies Meeting Rooms

Reviews

There are no reviews yet.

Be the first to review “Commercial LED Panel Light 2×2 36W 130LM/W Netural White 5000K UL Listed with 5 Years Warranty.”


Model Watts Qty/Ctns GW/KG
OX-PA3030-18W 18W 4 5.36 0.005
OX-PA6060-36W 36W 4 20.5 0.102
OX-PA3060-40W 40W 4 20.5 0.108
OX-PA60120-60W 60W 2 22.5 0.096

DOWNLOAD

DOWNLOAD

     (categlogue,IES ,Test Report)
