IP65 Waterproof LED Downlight 12w 1040 Lumens 3000k Warm White Color with CE RoHS SAA

1). Item No: OX-WDL-12W
2). Wattage: 12W
3). Power factor: 0.95
4). CRI>80, RA90 is Optional.
5). Luminous  efficiency: 90-100lm/W.
6). Cool White, 5500K.Nature White,4500k,Warm White 3000k

Category:
Inquiry Now

Product Description

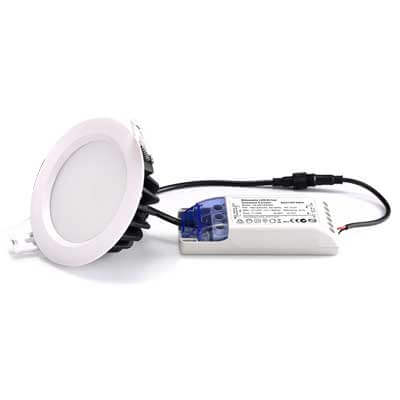

IP65 Waterproof LED Downlight

Bathroom led downlights 12w are produced by high quality components with good heat dissipation of aluninum ,high lumen chip Samsung 5630SMD ,including 24pcs up to 100 lumens per watt,total 1040 lumens for 12w bathroom downlights.

the accessories of led driver can be dimmable or non-dimmable both you can choose,the power factory is over 0.9 and the warranty is 5 years.



12w led bathroom lights designed to be modern looking,which is very suitable for most contemporary architectural designs,creating a clean and uncluttered look.



IP65 led downlight means the seal is very good ,it can put into the water.these downlights has lots of applicaion such as offices,shopping malls,hotels,exhibition rooms, meeting places and also to install where are very wet condition,for example it can be used for bathroom.It is used widely ,even you can not image that.



ip65 waterproof led downlights comes with different color ,warm white 2700k or 3000k natural white 4000k and white 5500k and passed SAA C-TICK ,CE RoHS AND IC-F

Features

  • 3 Year  Warranty
  • Watts 12W
  • Top Lumen 85-100 lm/w
  • CE RoHS and TUV Certification
  • Ceiling LED luminaires with aluminum frame in high value design
  • Energy Savings of up to 50%
  • Lumen Maintenance over 70% @ 50,000+ Hours
  • For ceiling mounting or pendant mounting
  • The driver PFC can be up to 0.95.
  • No UV/IR Radiation / No RF Interference
  • Best famous brand drivers are used: Meanwell or Lifud .
  • 8+ Years OX LIGHTING Design & Manufacturing

Applications

  • Office Lighting
  • Display case
  • Warehouse Lighting
  • Dining room
  •  Living room
  • Soffits
  • Undercabinet Lighting
  • Bathrooms

Available Options

  • Other power 7W/10W/12W/15W/20W/30W
  • Other voltage 175-265v,  100-277v
  • Other colorSilver,White Paint
  • Other C.C.T. 3000k, 4000k,5500k, 6500k
Item No

OX-WDL-12W

Power

12W

CRI

80

Power Factor

0.9

Voltage

85-265V

Frequency (hz)

50/60HZ

Chip Brand

Samsung

LED Chip

SMD 5630

LED Quantity

24 PCS

Luminous (LM)

1040 LM

Luminous Flux

90LM/W

Color Temperature(CCT)

3000K 4500K 5500K 6500K

Material

Die-cast aluminum + PS diffusion light guide plate

Beam Angle (Degree)

180 Degree

Certification

CE RoHS SAA

Rated lifetime (h)

50 000 HRS

Warranty

3 years warranty

Applications

bathrooms, soffits,alfresco’s etc

Reviews

There are no reviews yet.

Be the first to review “IP65 Waterproof LED Downlight 12w 1040 Lumens 3000k Warm White Color with CE RoHS SAA”


Model Watts Qty/Ctns GW/KG
OX-WDL-7W 7W 48 17.9 0.056
OX-WDL-10W 10W 36 20.3 0.07
OX-WDL-12W 12W 36 20.3 0.07
OX-DL-15W 15W 20 16.5 0.04
OX-DL-20W 20W 20 17.3 0.06
OX-DL-30W 30W 4 22.7 0.1

   DOWNLOAD

   (categlogue,IES ,Test Report)
